Cargo Freighter
Specifications
A330-200F
Payload-Range

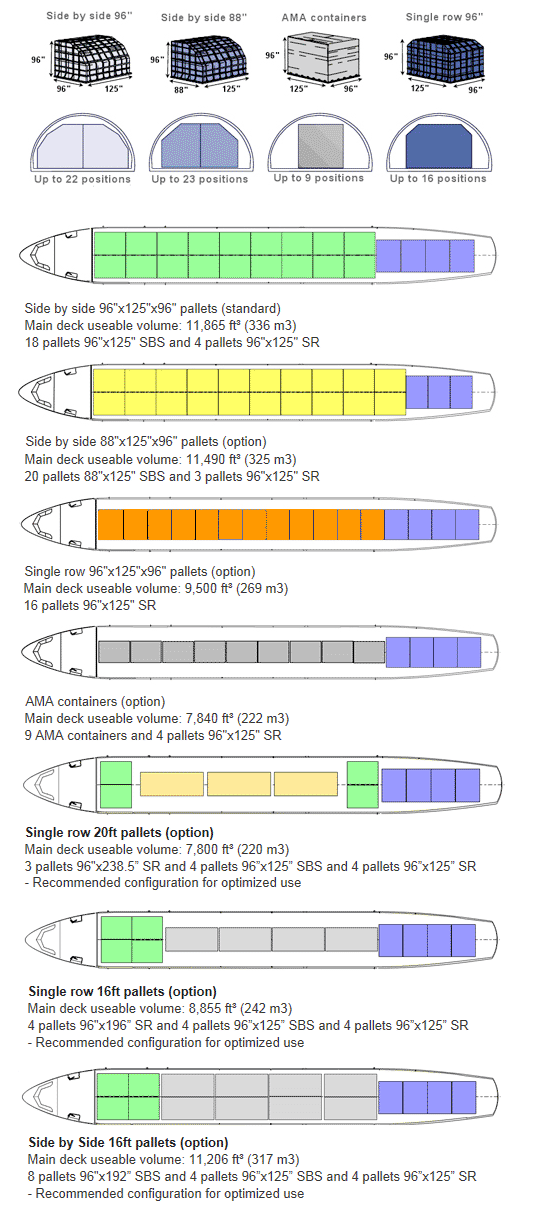

Loading Specification
Main Deck
Speical Container Load on Main Deck
Lower Deck
ULD Reference
Refer to above Main Deck (Green
color)
Refer to above Main Deck (Yellow color)
Refer to above Main Deck (Orange color)
Refer to above Main Deck (Blue color)
Refer to above Lower Deck (Gray color)
and
| Payload (Tons) | 70,000 |
| Volume (cbm) | 460 |
| Main Door Dimension (LxH, cm) | 369x258 |
| Bulk Door Dimension (LxH, cm) | 95x107 |
| Max Range (km) | 5,950 |
| Cruise speed (km/h) | 925 |
| MTOW (kg) | 233,000 |
| MZFW (kg) | 173,000 |
| Crew & Cargo Attendants | 2 |
| Max fuel capacity (kg) | 139,090 |
| Average fuel burn (tons/h) | 7 |
| Minimum runway (m) | 2,220 |
