Payload-Range
Loading Specification
Above view of cargo cabin
Side View of Cargo Cabin
3D view of Cargo Cabin
Load with ULD
ULD Reference:

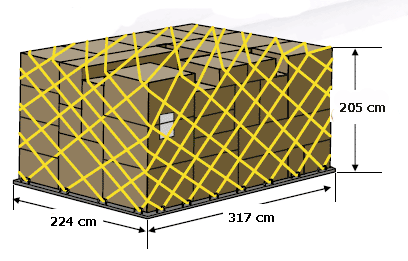

ULD and Contour / Position A-C
ULD and Contour / Position D
AAC
Cargo Freighter
Specifications
AN12
Payload-Range
Loading Specification
Above view of cargo cabin
Side View of Cargo Cabin
3D view of Cargo Cabin
Load with ULD
ULD Reference:
ULD and Contour / Position A-C
ULD and Contour / Position D
AAC
| Payload (Tons) | 18-20 |
| Volume (cbm) | 90 |
| Cargo Cabin Dimension (LxWxH, cm) | 1,355x280x240 |
| Tail Door Dimension (LxH, cm) | 298x295 |
| Max Range (km) | 5,500 |
| Cruise speed (km/h) | 550 |
| MTOW (kg) | 64,000 |
| MZFW (kg) | 58,800 |
| Crew & Cargo Attendants | 7 |
| Max fuel capacity (kg) | 22,800 |
| Average fuel burn (tons/h) | 2.0-2.2 |
| Minimum runway (m) | 1,800 |
