Payload-Range
Loading Specification
ULD Reference
Refer to above chart A (Gray color)
Refer to above chart B (Purple color)
Refer to above chart C (Blue color)
and
Refer to above chart D (Pink color)
Refer to above chart D (Green color)
Cargo Freighter
Specifications
B747-8F
Payload-Range
Loading Specification
ULD Reference
Refer to above chart A (Gray
color)
Refer to above chart B (Purple color)
Refer to above chart C (Blue color)
and
Refer to above chart D (Pink color)
Refer to above chart D (Green color)
| Payload (Tons) | 133,000 |
| Volume (cbm) | 858 |

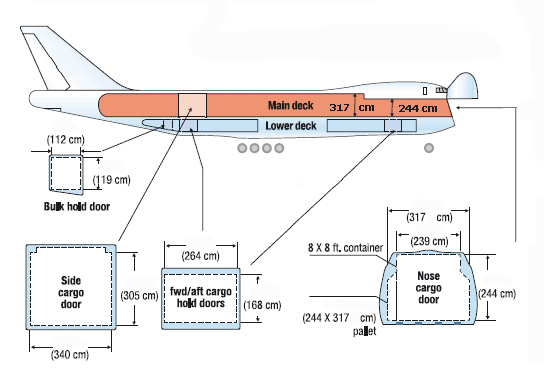

| Main Door Dimension (LxH, cm) | 341x305 |
| Nose Door Dimension (LxH, cm) | 356x249 |
| Bulk Door Dimension (LxH, cm) | 112x94 |
| Max Range (km) | 8,130 |
| Cruise speed (km/h) | 908 |
| MTOW (kg) | 448,000 |
| MZFW (kg) | 330,000 |
| Crew & Cargo Attendants | 2 |
| Max fuel capacity (kg) | 227,000 |
| Average fuel burn (tons/h) | Unknown |
| Minimum runway (m) | 3,048 |
