Cargo Freighter
Specifications
IL-96-400T
Payload-Range
Loading Specification

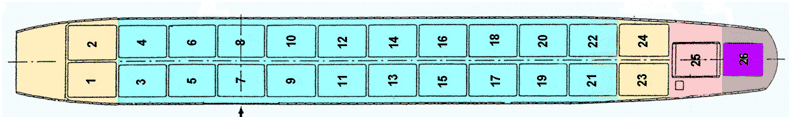

Main Deck Loading Reference
Lower Deck Loading Reference
ULD Reference
Refer to above Main Deck (Yellow
color)
Refer to above Main Deck (Light Blue color)
Refer to above Main Deck (Pink color)
Refer to above Main Deck (Purple color)
Refer to above Lower Deck
| Payload (Tons) | 92,000 |
| Volume (cbm) | 580 |
| Main Door Dimension (LxH, cm) | 485x287 |
| Bulk Door Dimension (LxH, cm) | 80x136 |
| Max Range (km) | 4,750 |
| Cruise speed (km/h) | 870 |
| MTOW (kg) | 265,000 |
| MZFW (kg) | 208,000 |
| Crew & Cargo Attendants | 3 |
| Max fuel capacity (kg) | 116,300 |
| Average fuel burn (tons/h) | 11 |
| Minimum runway (m) | 2,450 |
