Payload-Range
Loading Specification

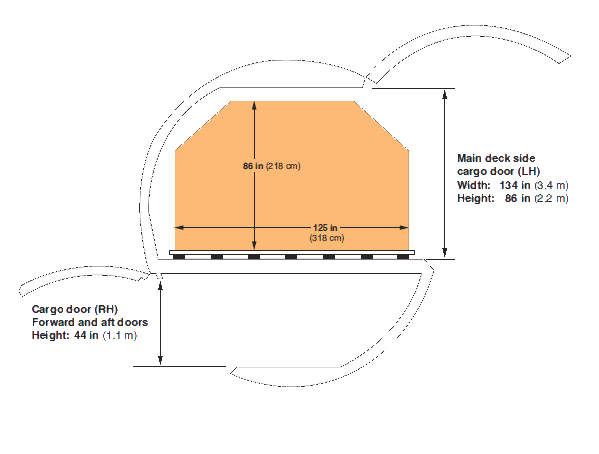

Main Deck
Lower Deck
ULD Reference
Refer to above Main Deck (Orange Color)
Refer to above Main Deck (Light Blue Color)
Refer to above Main Deck (Green Color)
Cargo Freighter
Specifications
TU-204C
Payload-Range
Loading Specification
Main Deck
Lower Deck
ULD Reference
Refer to above Main Deck (Orange
Color)
Refer to above Main Deck (Light Blue Color)
Refer to above Main Deck (Green Color)
| Payload (Tons) | 27,000 |
| Volume (cbm) | 179 |
| Main Door Dimension (LxH, cm) | 340x218 |
| Forward Door Dimension (LxH, cm) | 134x120 |
| After Door Dimension (LxH, cm) | 134x120 |
| Max Range (km) | 3,300 |
| Cruise speed (km/h) | 850 |
| MTOW (kg) | 103,000 |
| MZFW (kg) | Unknown |
| Crew & Cargo Attendants | 3 |
| Max fuel capacity (kg) | 32,800 |
| Average fuel burn (tons/h) | 3.5 |
| Minimum runway (m) | 1,760 |
