PLA
Applicable Aircraft -
A300F, A310F, A330F, A380F, B707F, B727F, B737F, B747F, B757, B767F, DC-8F, DC-10F, L1011F and MD11F
ULD - Unit Load Devices
and Contours
PLA
Applicable Aircraft -
A300F, A310F, A330F, A380F, B707F, B727F, B737F, B747F, B757,
B767F, DC-8F, DC-10F, L1011F and MD11F
| Code | Base Type |
Classification | Class Type |
Contour | Dimension (LxWxH, cm) |
Usable
Dimensions (LxWxH, cm) |
Door Dimension (LxH, cm) |
Volume (cbm) |
Estimate Max Gross Weight (Kg) |
Estimate |
Note |
| PLA PLB PLD P9A P9B P9P P9R P9S FLA |

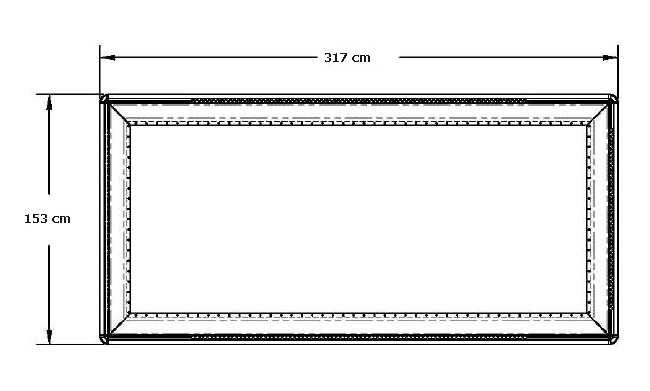

6 | 317x153x163 | 306x142x152 | 6 | 3,170 | 85 |
